Brand Name : DAXIAN
Model Number : DX8510
Certification : CE
Place of Origin : China
MOQ : 1 set
Price : Negotiable
Packaging Details : Standard export wooden case
Delivery Time : 30 days after order confirmed
Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability : 30 sets per month
Standards : UL 1581 UL62
Test voltage : ac 0 ~ 250v continuously adjustable

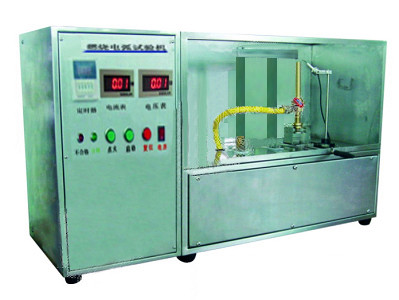

HPN Type Cord Firing Arc Testing Machine
In accordance with UL 1581, Chapter 1670 "HPN-type soft-wire combustion arc test" design, in line with UL 1581, UL62 test standards. Apply HPN type cords (including two power cords and one or no ground cords) to a conductor in the horizontal section of the cord and apply a 120V 48~62Hz approximate sinusoidal AC voltage to the conductors of the cord, and apply a test flame to the cord 2 At one minute, the arcs between the power cords of the cords should not be arcing.
1. Test voltage: ac 0 ~ 250v continuously adjustable
2. Test current: 20a breaker current is 15a
3. Transformer power: 5000w
4. Automatic ignition and automatic extinguishing function
5. Torch diameter: 9.5mm, flame height 38mm, temperature 816 °c
6. With temperature measuring device
7. Burning timer: 0~99.99s/m/h digital adjustable
8. With sound and light alarm
![]() |
HPN Type Cord Flammability Testing Equipment With Sound Light Alarm Images |
